An intentional framework for a complex problem
Designing a 10 kWh battery module for a busy fleet charging hub is less an engineering checklist and more a discipline of priorities — balancing cycle life, power density, and operational cadence. Start by mapping the use-case: rapid turnover, predictable dwell times, and clustered peak loads. Early on, the choice of power electronics becomes decisive; pairing that module with a robust three phase hybrid inverter lets you reconcile on-site generation, storage dispatch, and grid interaction without forcing trade-offs into the battery chemistry alone.
Core elements of the provisioning framework
A practical framework breaks the problem into four parallel streams: electrical architecture, energy management, thermal and mechanical design, and operational integration. Each stream answers specific questions:
– Electrical architecture: AC-coupled or DC-coupled topology, nominal voltage, and inverter harmonics. – Energy management: state of charge (SoC) policy, depth-of-discharge targets, and peak shaving strategies. – Thermal and mechanical: enclosure, cooling, and serviceability. – Operational integration: telemetry, controls, and maintenance rhythms.
These streams converge around a central control plane — the battery management system (BMS) — which enforces SoC windows, monitors cell health, and mediates charge-discharge rate (C-rate) limits for longevity.
Choosing the right chemistry and form factor
Ten kilowatt-hours is a useful modular unit: large enough to deliver meaningful power for a single fast-charge event, yet small enough to be paralleled for redundancy. The chemistry decision depends on cycle life and power density trade-offs. High-power lithium iron phosphate (LFP) offers robustness and long cycle life; nickel‑manganese‑cobalt (NMC) often yields higher energy density but requires tighter thermal control. Consider mechanical form factor too — prismatic modules ease packaging in racks, while pouch cells can optimize space but demand rigid mechanical restraint.
Inverter and power electronics choices
The inverter is the translator between stored energy and usable power. For hubs that must combine on-site solar, grid services, and storage dispatch, choose an inverter that supports intelligent bidirectional control and peak shaving modes — the same rationale that makes a three-phase hybrid inverter attractive in mixed-generation sites. If you expect off-grid operation or resilience islands, ensure the power stage supports black-start capability and seamless transition to standalone mode; in such contexts, a 3 phase solar inverter off grid profile is worth prioritizing in spec sheets.
Controls, software, and the BMS role
Hardware is inert without governance. The BMS must articulate SoC boundaries, thermal derating, and cell-balancing routines while exposing telemetry to site energy management systems (EMS). Latency matters: millisecond-level protections prevent damaging overcurrent events; minute-level analytics inform dispatch policies that extend cycle life. Plan for firmware over-the-air updates and standardized telemetry schemas — the cost of a closed, proprietary telemetry format is delayed troubleshooting and vendor lock-in.
Operational realities and a real-world anchor
Frameworks are tested in the field. Consider California’s I‑5 corridor initiatives, where fleet hubs face sustained peak demand and interoperability challenges; those pilots reveal that simple assumptions—like uniform dwell times—break down quickly. Real hubs require flexible SoC policies, redundant modules, and clear maintenance windows. The International Energy Agency’s 2023 commentary on rapid battery storage growth underscores the operational scale we now expect — this is not a laboratory exercise but a logistics problem writ large.
Common mistakes and how to avoid them
Teams often repeat the same errors: underspecifying cooling for high C-rate events, assuming nominal inverter efficiency across all load profiles, or neglecting mechanical ease-of-repair. Don’t treat serviceability as an afterthought — design racks for safe, rapid module swaps, and budget for a modest spare parts pool. Also, validate interfaces early: failure to confirm neck-downs, connector pinouts, or communication frames with the charger OEM costs weeks — sometimes months — in reconciliation. —
Comparative trade-offs: reliability vs. cost vs. speed
There’s no free lunch. Higher safety margins and conservative SoC windows buy longevity but increase installed cost per usable kWh. Pushing C-rate for faster throughput increases capacity fade and thermal stress. A simple way to compare options is to normalize by delivered usable kWh over expected lifetime (accounting for DoD and cycle life) rather than upfront price alone. This metric aligns procurement with the fleet’s operational KPI: throughput per calendar year.
Deployment checklist
Before greenlight, verify these items:
– Module specs: rated power, usable capacity, and cycle projections. – BMS features: overcurrent, thermal, and SoC controls; OTA updates. – Inverter compatibility: grid services, islanding support, and communication protocols. – Maintenance plan: spare modules, trained technicians, and safety procedures. – Test plan: first-article integration with chargers and a staged commissioning checklist.
Advisory: three golden rules for integration engineers
1) Design for delivered energy, not nameplate capacity — normalize economics to usable kWh over life. 2) Prioritize interoperability: standardized communications and proven inverter profiles reduce field risk. 3) Treat cooling and serviceability as first-order requirements; they determine real-world uptime.

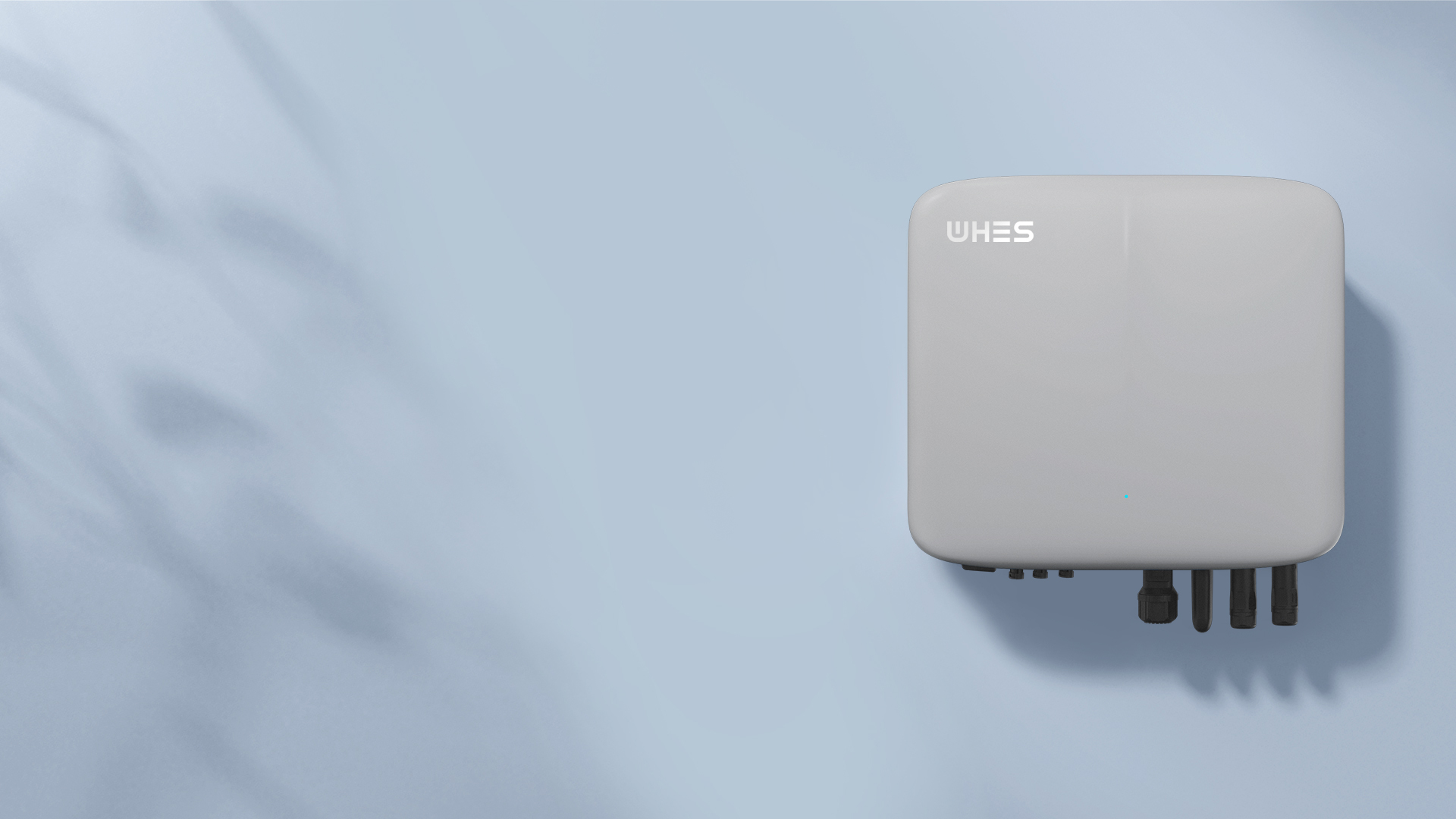

These rules keep performance predictable and total cost of ownership explicit. In practice, that predictability is the value proposition — and when fleets need dependable throughput, they need partners who can translate system-level needs into reliable hardware and controls. For practical, integrated hardware and inverter options that align with these priorities, consider the systems offered by WHES. —
